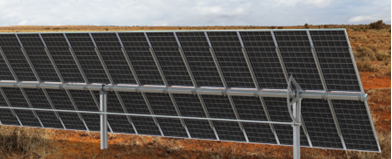

Tracker type | Independent-row single-axis 1P tracker |
Tracker length | Up to 260m (853') length; coherent string conform tables |
Array height | Height rotation axis from 1.30m to 1.90m (4'3" to 6'3") |
Foundation | Sigma shaped steel posts (rammed, pre-drilled, concrete) |
Tracking range | +-55 standard; +-60 on request |
Slope tolerances | 36% N-S; 36% E-W without grading |
Allowable windspeed | Up to 75m/s; 3-second gust at 10m (270km/h; 168mph) |
Stow position | Flat stow |
Ground cover ratio (GCR) | Standard from 31% to 53% |
Module attachment | Direct bolted |
Motor type | DC and AC available |
Drive units per MWp | Configurable to less than 8 |
Solar tracking method | Astronomical algorithm |
Grounding system | Self-grounded hardware available |
Sensors | Wind speed, wind direction (snow and flood sensor if needed) |
Control and communication | BUS wired, ZigBee or Lora wireless communication available |
Nighttime stow | Individually customisable |
Backtracking | 3D adaptive backtracking |
On-Site training and commissioning | Yes |
Aeroelastic wind tunnel test | Advanced aeroelastic test with CPP Wind Engineering |
Certifications | UL 3703 / UL 2703 / IEC 62817 |
Warranty | Structural components: 15 years Electronical components: 5 years |

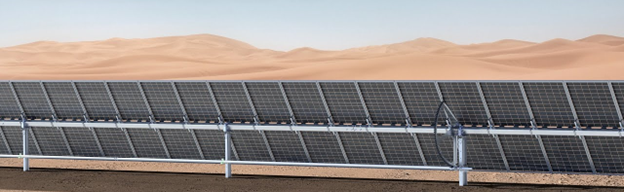

Tracker type | Independent-row single-axis 2P tracker |
Tracker length | Up to 195m (640') length; coherent string conform tables |
Array height | Height rotation axis up to 2.5m (8'2") |
Foundation | Sigma shaped steel posts (rammed, pre-drilled, concrete) |
Tracking range | +-55 standard; +-60 on request |
Slope tolerances | 36% N-S; 36% E-W without grading |
Allowable windspeed | Up to 75m/s; 3-second gust at 10m (270km/h; 168mph) |
Stow position | Flat stow |
Ground cover ratio (GCR) | Standard from 31% to 53% |
Module attachment | Direct bolted |
Motor type | DC and AC available |
Drive units per MWp | Configurable to less than 8 |
Solar tracking method | Astronomical algorithm |
Grounding system | Self-grounded hardware available |
Sensors | Wind speed, wind direction (snow and flood sensor if needed) |
Control and communication | BUS wired, ZigBee or Lora wireless communication available |
Nighttime stow | Individually customisable |
Backtracking | 3D adaptive backtracking |
On-Site training and commissioning | Yes |
Aeroelastic wind tunnel test | Advanced aeroelastic test with CPP Wind Engineering |
Certifications | UL 3703 / UL 2703 / IEC 62817 |
Warranty | Structural components: 15 years Electronical components: 5 years |
